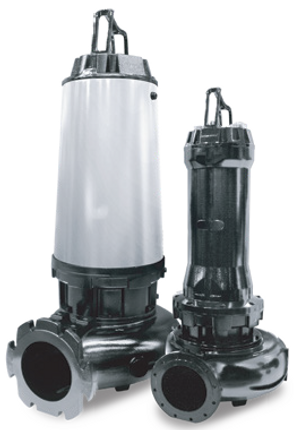

MQ
Submersible Pumps
Description
The MQ-series of the “TSURUMI AVANT” brand adds an IE3 premium efficiency motor to the premium grade of submersible sewage pumps that Tsurumi makes. With this new series, overall efficiency and energy-savings have been taken to new heights by pursuing greater efficiency in both the pump and motor.
Moreover, to ensure users get what they are looking for, the MQ-series offers 5 types of impellers (Open Channel, Chopper, Vortex, Grinder and High Head) and super wide ranges of specifications featuring 50 to 600 mm discharge bore diameters and 1.8 to 355 kW motor output specifications. Plus, pump installation can be chosen between a WET version that submerges the pump in water or a DRY version that installs the pump indoors or outside the tank using the original closed jacket cooling system with internal recirculation.
Characteristics
Cast iron structure (stainless steel on request)
Class H electric motor from 1.8 kW to 355 kW in efficiency class IE3
50 Hz and 60 Hz versions
Thermal protection devices incorporated in stator
Long life bearings (100,000 hours)
AISI 431 drive shaft (AISI 329 on request)
Leakage detection system in seal chamber (standard) and motor (on request)
Two silicon carbide mechanical seals with Oil Lifter in large oil chamber
Discharge from DN50 to DN600
Large free passage declared for every model
WET or DRY version available
Original closed jacket cooling system with internal recirculation
Operating temperature up to 60°C (up to 80° on request)
Explosion-proof (Designed in accordance with IECEx)
