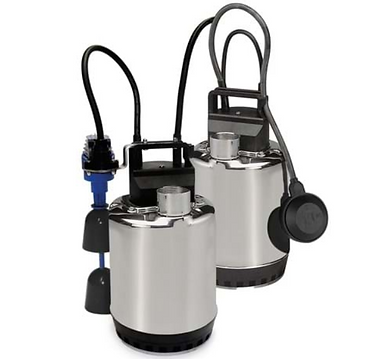

DOC
Submersible
Electric Pumps
Description
DOC pumps are versatile,
corrosion-resistant and compact.
Three basic versions are available with 0,25 to 0,55 kW power.
A DOC 7VX version with Vortex impeller is available.
APPLICATIONS
• Emptying of residential sump pits, rainwater tanks or laundry drainage.
• Garden and lawn irrigation, with suction from rainwater tanks.
• Emergency draining of flooded basements and garages.
• Transfer of water from tanks and basins.
SPECIFICATIONS
• Maximum liquid temperature: 40°C.
• Dry motor cooled by the pumped liquid.
• Power cord:
– single-phase: with plug.
– three-phase: without plug.
• Insulation class 130°C (B).
• IPX8 protection.
• Maximum immersion depth: 5 m.
• The GDOC3 pump features a flow rate up to 135 l/min, head up to 7 m, and passes suspended solids up to 10 mm in diameter. Only available in single-phase version.
• The GDOC7 pump features a flow rate up to 225 l/min, head up to 11 m, and passes suspended solids up to 10 mm in diameter.
